Size and specification:

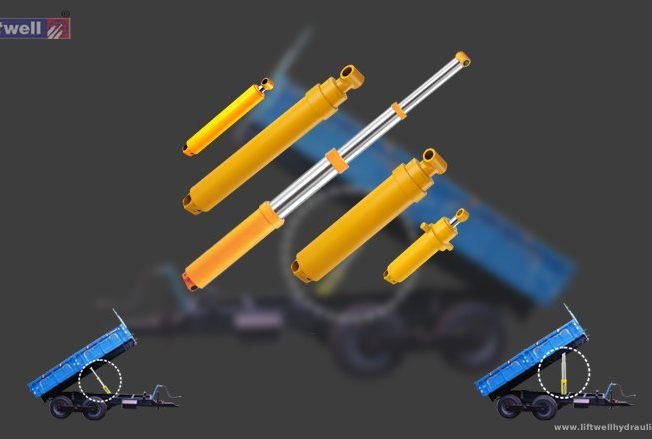

These are Single Acting Telescopic Hydraulic cylinders
(Sizes of our regular products) All Sizes in MM
| PRODUCT CODE | CAPACITY | CLOSE CENTER | STROKE | OPEN CENTER | BORE DIA | ROD DIA | BODY END | ROD END |
|---|---|---|---|---|---|---|---|---|
| LW-A2 (21.5′) | 2 TON | (21.5”) 547 | 649 | 1195 | Ø78 , Ø60 | Ø71 , Ø42 | 33 | 33 |
| LW-TA3 (21.5”) | 3 TON | (21.5”) 547 | 649 | 1195 | Ø78 , Ø60 | Ø71 , Ø42 | 33 | 33 |
| LW-A3 (26”) | 3 TON | (26”) 655 | 855 | 1510 | Ø103 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-A5 (26”) | 5 TON | (26”) 655 | 855 | 1510 | Ø112 , Ø78 | , Ø87 , Ø58 | 40 | 35 |
| LW-A10 (26”) | 10 TON | (26”) 655 | 855 | 1510 | Ø127.5 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-AH15 (26”) | 15 TON | (26”) 655 | 855 | 1510 | Ø103 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-A15 (30”) | 15 TON | (30”) 755 | 1047 | 1805 | Ø112 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-AH15 (30”) | 15 TON | (30”) 755 | 1047 | 1805 | Ø103 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-A20 (30”) | 20 TON | (30”) 755 | 1047 | 1805 | Ø127.5 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-AH15 (32”) | 15 TON | (32”) 805 | 1108 | 1914 | Ø103 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-AB15 (32”) | 15 TON | (32”) 805 | 1108 | 1914 | Ø112 , Ø78 | Ø87 , Ø58 | 40 | 35 |
| LW-AB20 (32”) | 20 TON | (32”) 805 | 1108 | 1914 | Ø127.5 , Ø78 | Ø87 , Ø58 | 40 | 34 |
| LW – 3TS (26″) | 20 TON | (26”) 667 | 1182 | 1847 | Ø127.5 , Ø103 , Ø76 | Ø112 , Ø87.5 , Ø59 | 40 | 34 |
| LW – 3TS (32″) | 20 TON | (32”) 811 | 1637 | 2450 | Ø127.5 , Ø103 , Ø76 | Ø112 , Ø87.5 , Ø59 | 40 | 34 |
 HIGH SPEED (ALL DIMENSIONS ARE IN ‘MM’) |
||||||||
